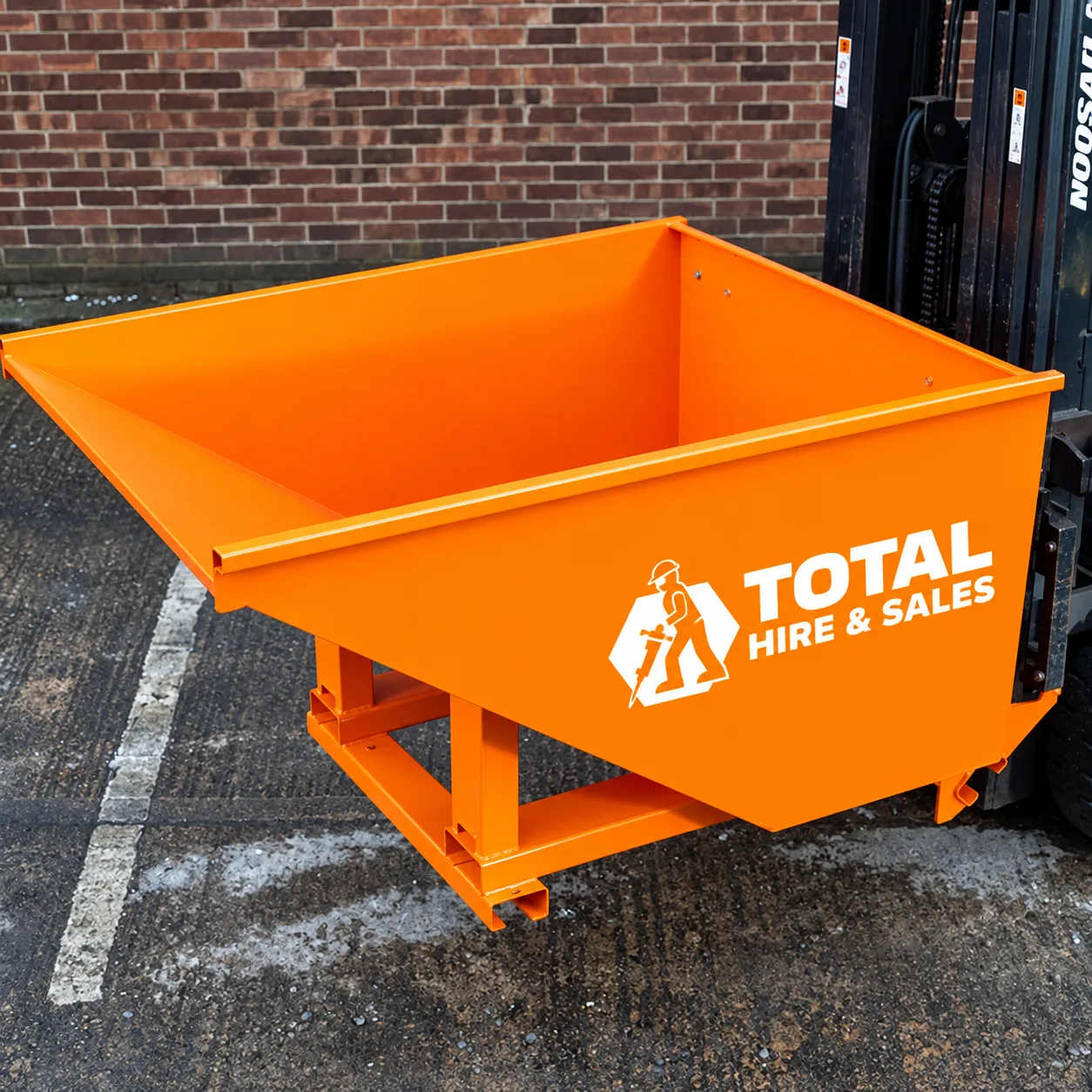

The Auto-Lok Tipping Skip is a heavy-duty telehandler attachment designed to make the handling, transportation and emptying of materials safer, quicker and more efficient.
The automatic locking mechanism engages with the telehandler forks when the skip is lifted, securing the attachment without requiring the operator to leave the safety of the cab. Once positioned over the unloading area, the skip can be tipped using the telehandler controls, allowing materials to be discharged efficiently and with minimal manual handling.
The skip features a four-way fork entry system, making it easy to position and use on site. Its fully welded body helps prevent leakage, while the reinforced loading edge and durable painted finish provide long-lasting performance in demanding construction, industrial and waste-handling environments.
|

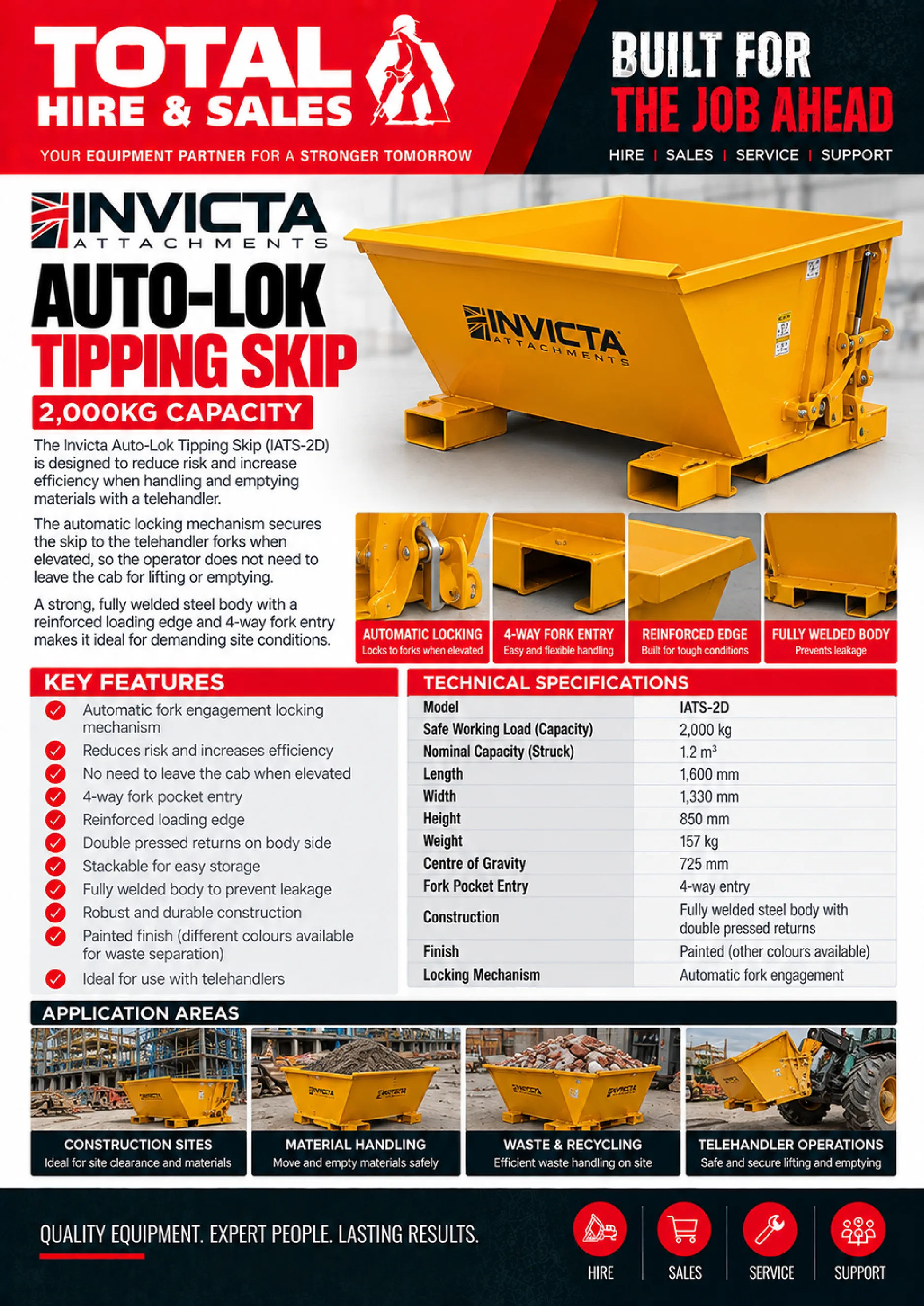

Specification
|
Auto-Lok Tipping Skip
|
|---|---|
|
Model
|
IATS-2D
|
|
Maximum capacity
|
2,000kg
|
|
Nominal capacity
|
1.2m³
|
|
Weight
|
157kg
|
|
Length
|
1,600mm
|
|
Width
|
1,330mm
|
|
Height
|
850mm
|
|
Centre of gravity
|
725mm
|
The telehandler and attachment must be suitable for the intended load and application. Operators must be familiar with the correct use of the Auto-Lok locking mechanism and the skip must only be emptied on suitable, stable ground.
All personnel must remain clear of the skip during lifting, transportation and emptying. The skip must not be shock-loaded or emptied while using the side-entry pockets, as this could affect the stability of the telehandler.
Contact Total Hire & Sales team for availability, hire rates and delivery options. Specifications are based on the manufacturer’s published information: Invicta Forks & Attachments
