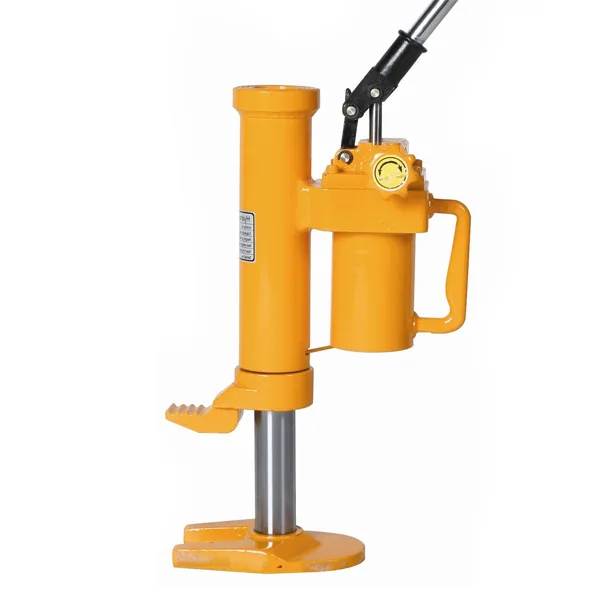

The TTC HM50 Rotational Toe Jack is a compact and stable hydraulic lifting jack suitable for lifting and positioning heavy machinery, plant, steelwork and other industrial equipment up to 5,000kg.
Its rotating housing can swivel through 360°, allowing the jack to be positioned more easily in restricted or awkward working areas. The HM50 can be used in different positions where suitable, while the adjustable lowering control provides smooth and controlled descent.
The removable pump lever makes the jack easier to transport and position, while the built-in overload protection helps provide safer operation when used correctly.
|

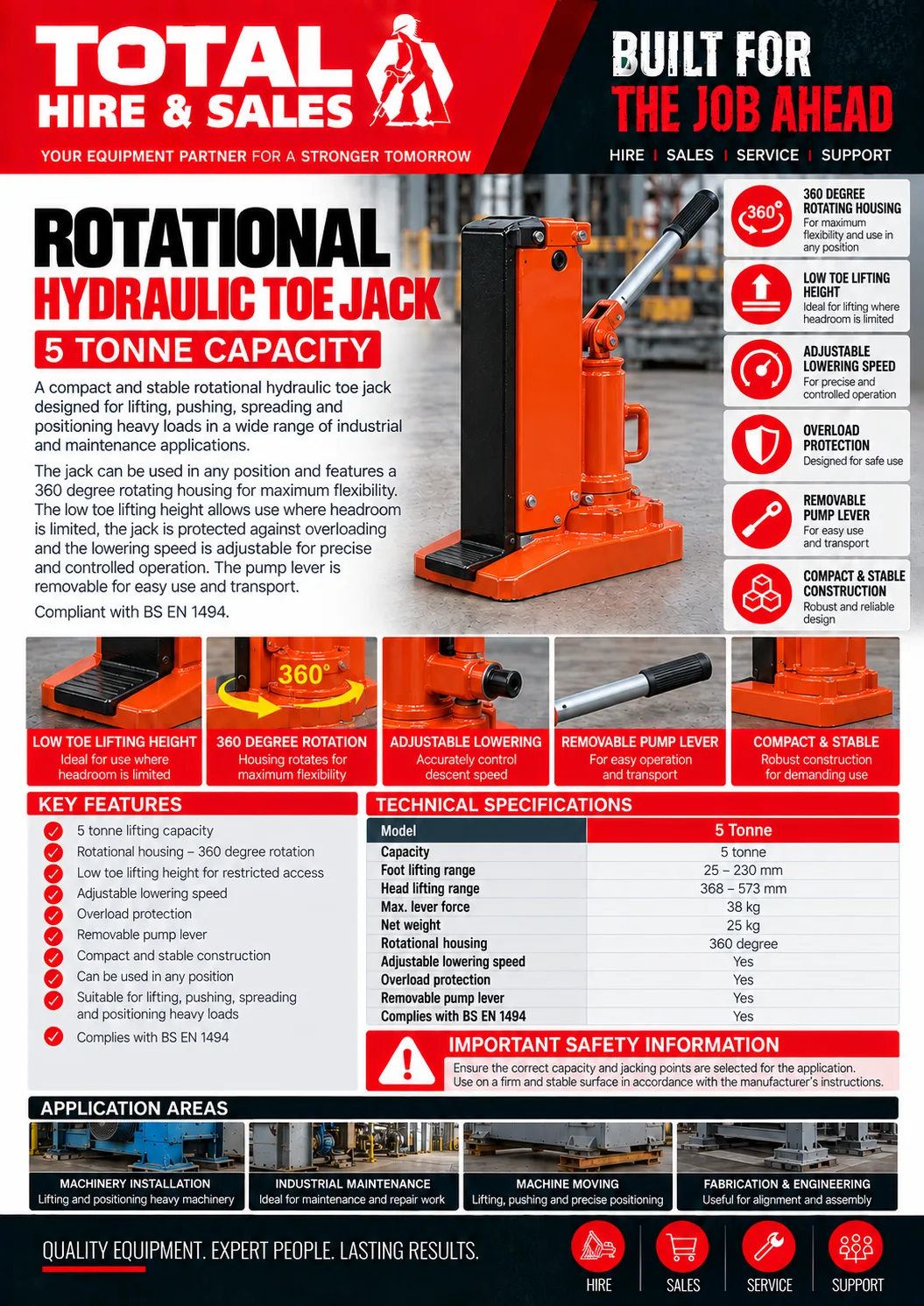

Specification
|
HM50
|
|---|---|
|
Safe Working Load
|
5,000kg
|
|
Lifting range – foot/toe
|
25–230mm
|
|
Lifting range – head
|
368–573mm
|
|
Maximum lever force
|
38kg
|
|
Net weight
|
25kg
|
The HM50 specification and lifting ranges are based on the manufacturer’s published details. TTC Lifting
The jack must only be operated by trained and competent users. Always position it on a firm, level and suitable surface, ensure the load is stable and securely supported, and never exceed the 5,000kg safe working load. The load should remain supported by suitable equipment once lifted, and personnel must be kept clear during lifting and lowering operations.
Contact Total Hire & Sales for availability, hire rates and delivery options.
