0.8 tonne Mini Digger/Micro Excavator

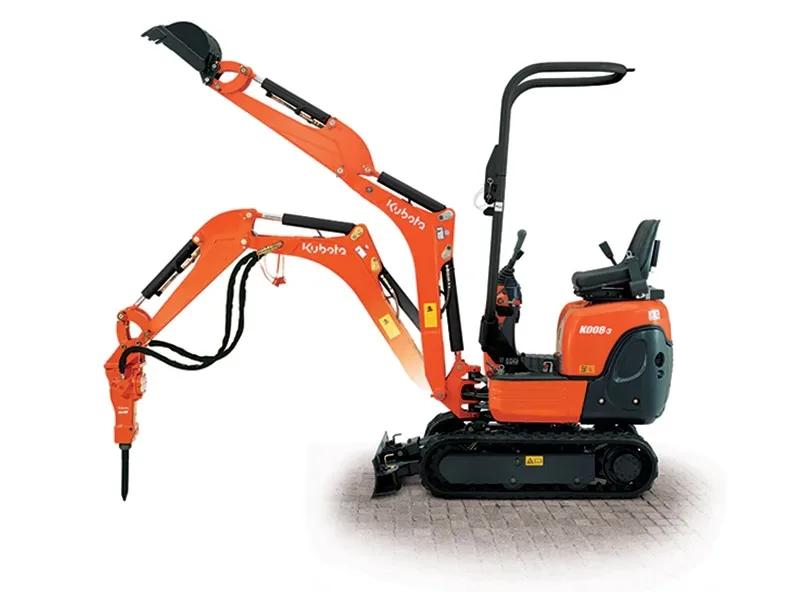

The Kubota K008‑5 0.8 tonne mini‑excavator/micro digger, available for hire from Total Hire and Sales, is ideal for use in garden projects and for small excavations. It delivers powerful performance in a true ultra‑compact package.

Its telescoping track, Stage V engine, zero‑tail swing design, fold-down ROPS, and smart hydraulics make it a top choice for tight-space jobs. With efficient operation, strong safety features, and easy maintenance, it serves landscapers and contractors seeking versatility in a pint-size powerhouse.

Our 0.8 tonne  It features a dig depth of 1800mm and can be fitted with a range of accessories that are available to hire including a 30″ ditching bucket and hydraulic breakers.

• Model K008-5
• Machine Weight (kg) 900
• Power ISO 14396 PS (kW) / rpm 10.3 (7.6) / 2050
• Power ISO 9249 PS NET (kW) / rpm 10.3 (7.5) / 2050
• Max Speed (km/h) 2.0
• Max Dig Depth (mm) 1720
• Max Reach (mm) 3020
• Max Digging Force Arm/Bucket (kN) 4.5/9.8
• Aux Flow 1 21 l/min @ 165 kgf/cm2
• Overall width (mm) 700 to 860
• Transport height (mm) 2750

General Description

The Kubota K008‑5 is an ultra-compact, zero‑tail swing mini‑excavator weighing approximately 0.95–1.05 tonnes. Designed for tight urban sites, landscaping, and indoor jobs, it fits through narrow gates, doorways and other constrained spaces.

Power & Performance

• Engine: Powered by Kubota’s Stage V/EPA Tier 4-compliant D722 3‑cylinder diesel, delivering about 7.6 kW (10.3 PS). Known for its low noise, minimal vibration, and robust fuel efficiency.
• Digging capabilities: Max digging depth of around 1.72 m, with a horizontal reach near 3.02 m. Boasts a bucket breakout force of approximately 2,205 lb (1,000 kgf) and arm breakout of 1,012 lb (459 kgf).
• Hydraulics: Features dual gear pumps powering work circuits, plus an auxiliary line (~21 L/min) for attachments.
• Travel speed: Two-speed travel mode: ~2 km/h (low) and up to 4 km/h (high).

Design & Versatility

• Adjustable width track: Track gauge can hydraulically narrow from 860 mm to 700 mm, allowing easy passage through tight spaces.
• Zero-tail swing body: Enables close‑quarters operation with no rear overhang.
• Foldable ROPS: Roll-over protective structure that folds down for transport or low-clearance environments.
• Quick-release bucket pins: Enables tool-free swapping of buckets and attachments.
• Compact blade: Front dozer blade’s width adjusts with a single pin—matched to the track width.

Comfort & Operator Safety

• Operator zone: Comfortable, ergonomic open‑station layout with excellent visibility, padded seat, and user-friendly controls.
• Boom-swing pedal: Toe/heel pedal makes swing control intuitive.
• Lighting & alarms: Boom-mounted LED work light, orange seat belt with warning alarm, travel alarm, and stable safety harness.
• Anti-theft & safety systems: Engine safety start (must be neutral for start), battery isolator, and electronic immobiliser on encoded keys.

Maintenance & Serviceability

• Accessible maintenance: Full-opening engine cover, easy access to filters, battery, and hydraulic ports.
• Protected hydraulics: Boom hoses and boom cylinder are shielded internally for durability.
• Durable undercarriage: Rubber tracks, double-flange rollers, maintenance-friendly components.

Ideal Use Cases

• Residential landscaping and digging
• Urban utility and groundworks in tight spaces
• Indoor and low-clearance projects
• Attachment work (breaker, auger, etc.)

All excavators and mini diggers are available with a selection of buckets and attachments. These can be configured to suit a variety of applications and environments.

A range of zero tail swing diggers are also available from Total Hire and Sales. Contact the team on 0800 023 8993 for more details.
